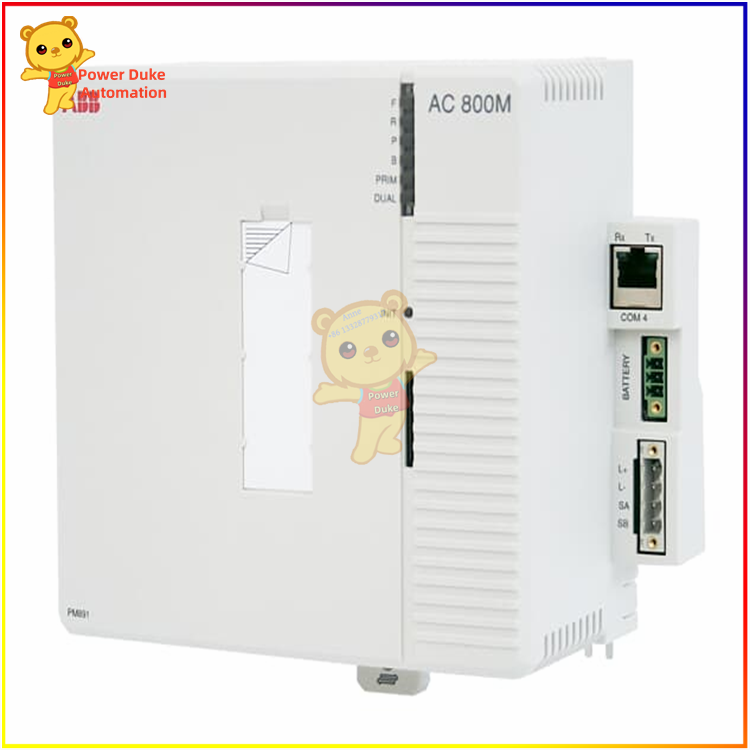

ABB PM891K01 3BSE053241R1 High-performance Redundant CPU Controller

I. Basic Information

Brand: ABB

Model: PM891K01

Material Code: 3BSE053241R1

System: AC 800M Controller / ABB System 800xA Distributed Control System

Product Positioning: High-end process main processor, supporting 1:1 dual-machine hot redundancy architecture, core control unit for large-scale process plants ABB

Core Hardware Parameters

Processor and Storage

Main Frequency: 450 MHz High-performance RISC Processor

Standard Configuration: 256MB RAM + 512MB Flash, supports SD card program local backup

Minimum Control Cycle: 1ms, supports complex PID, cascade, model predictive control algorithms

Power Supply Specifications

Rated Input: DC 24V (Voltage range 19.2～30V DC)

Typical Power Consumption: Around 16W

No built-in backup battery, relies on system power to keep real-time clock running ABB

Board-Integrated Interfaces

CN1/CN2: 2 redundant RJ45 Ethernet ports (control network communication, supports redundant networking)

COM4: Isolated RJ45 Debug Serial Port, used for Control Builder program download, local debugging

CEX-Bus Expansion Bus: Expandable Profibus, Modbus, etc. communication modules

Fiber Optic ModuleBus: Up to 7 groups of S800 I/O clusters, a total of 84 I/O modules

Environmental and Physical Parameters

Operating Temperature: 0℃～+55℃, Storage - 40℃～+85℃

Protection Grade: IP20 (DIN rail installation in control cabinet)

Overall Machine Weight: Approximately 0.75kg

Matching Terminals: TB850 Bus Terminal, TB853 Redundant Link Terminal

Core Functional Features

Full Link Redundancy Capability

Supports CPU, Ethernet, CEX bus, S800 IO full redundancy; seamless switch between primary and backup, switching time < 100ms, meeting high-reliability conditions for power plants, chemical plants, etc., meeting SIL3 functional safety level requirements.

Strong Expansion Capability

Through CEX bus to expand various fieldbus communication cards, compatible with Profibus DP, Modbus TCP/RTU, FF fieldbus protocols, can connect third-party instruments, frequency converters, valve positioners.

Complete Hardware Diagnosis

Panel status LED indicators (power, operation, fault, redundancy, communication), real-time self-check of hardware, bus, network faults, supports upload of upper computer fault alarms.

Hot Swap Design

Under redundant architecture, can ｒｅｐｌａｃｅ single CPU online, no system shutdown required, minimizing device shutdown risks.

Typical Application Scenarios

DCS for power plant, hydropower, gas-fired power plants units, auxiliary network control systems

Large-scale process plants in petroleum refining, coal chemical, fine chemical industries

Continuous process industries in metallurgy, cement, papermaking, pharmaceuticals

Automation systems for water treatment, pipelines, oil and gas long-distance pipelines

Compatible Accessories of the Same Series

Communication Expansion: CI854, CI867, CI855, etc. bus interface modules

IO Series: S800 I/O modules (AI/DI/AO/DO)

Redundancy Accessories: BC810 Bus Redundancy Unit, TB850 Terminal Resistance Terminal
