Product Description

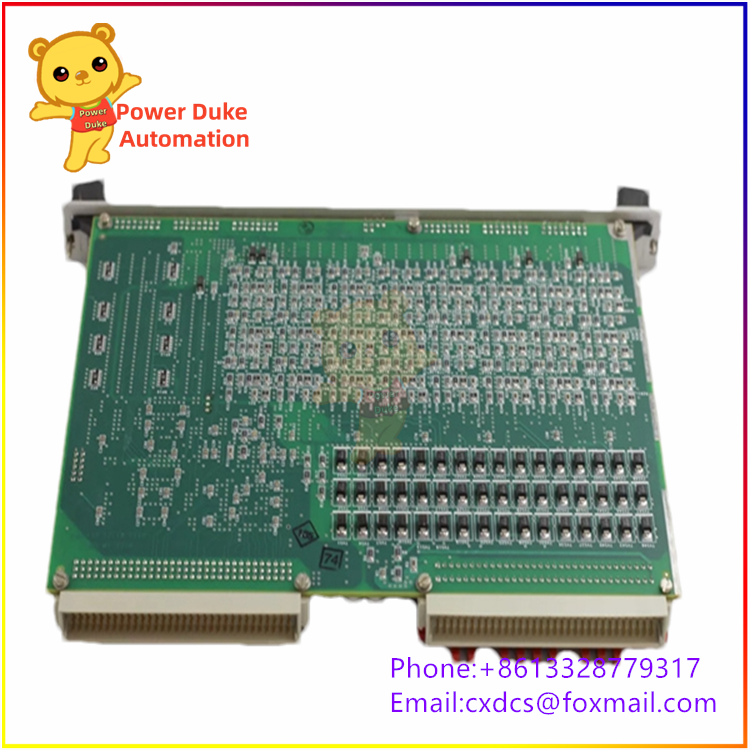

AMAT 0100-01321 is a digital input/output module (Digital I/O Board) applied to the AMAT series of semiconductor manufacturing equipment (such as Endura, Centura, Producer, P5000, etc.). As a bridge between the equipment control system and on-site sensors and actuators, it is responsible for collecting process parameters, monitoring status, and issuing control commands.

Its core positioning: collection and output of multi-channel digital and analog signals, achieving equipment automation and precise process control.

Key parameters

Parameter item Specification

Part number 0100-01321

Version Rev 09

Type Digital Input/Output Module (Digital I/O Board)

Input channels Multi-channel digital input + Analog input (Supports simultaneous connection of multiple sensors)

Output channels Multi-channel digital output + Analog output (Controls actuators/valves)

Signal conditioning Integrated high-speed signal conditioning + High-precision A/D conversion

Electrical isolation Each channel has electrical isolation protection

Protection functions Overvoltage protection, Overcurrent protection, Short-circuit protection

Response speed High-speed signal processing, completes acquisition and output within short periods

Interface type Standard plug-and-play design, compatible with AMAT controllers and interconnection components

Operating environment Industrial-grade design, resistant to vibration, high temperature, humidity, and electromagnetic interference

Status indication Built-in channel status LED + Abnormal alarm function

Compatibility Specifically designed for AMAT series equipment, can seamlessly connect with controller modules and other I/O modules

Typical application scenarios

Application subsystem Specific purpose

Cavity control (Chamber Control) Collect sensor signals (temperature, pressure, gas flow) inside the cavity, and output control instructions

Gas panel (Gas Panel) Control MFC/valve switches, monitor gas flow and pressure feedback

Heating system (Heating System) Temperature sensor signal collection → Heater power adjustment output (closed-loop control)

Vacuum system (Vacuum System) Reading vacuum gauge signals, valve drive control

Driver module (Driver Module) Intermediate transfer of control signals for motors/stepper motors

Robot control (Robot) Complement with 0100-71047 switch matrix, etc., to achieve routing of robot axis control signals

Related part numbers (commonly used in the system)

Part Number Name Relationship

0100-71047 Switch Matrix Module Used in conjunction, for signal routing and switching

0100-01488 Sensor Module Sensor signal acquisition module

0100-09108 Digital Input Module Pure digital input module

0100-20036 Encoder/Driver/Relay, etc. System-level spare parts

0100-03012 Sensor Heater Control Module Similar I/O control module
