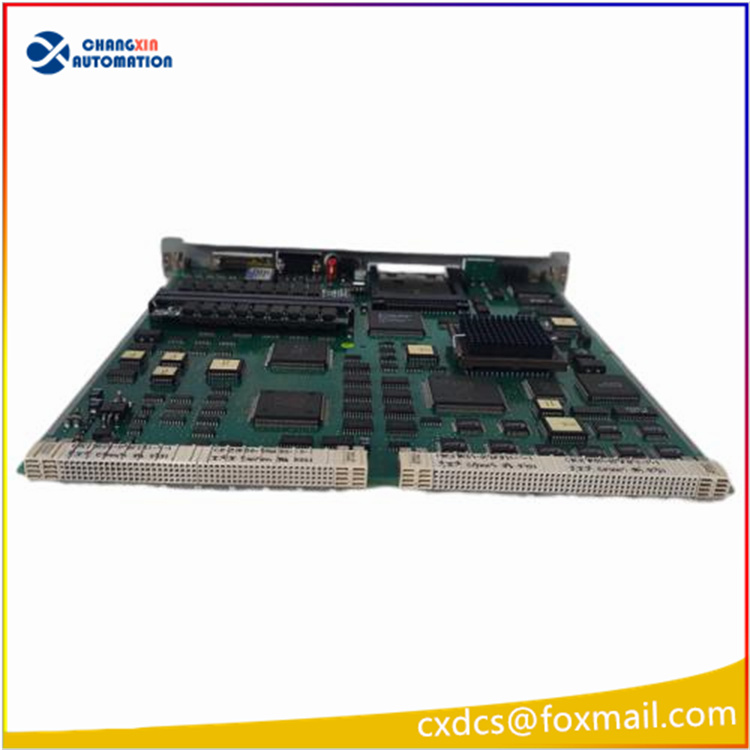

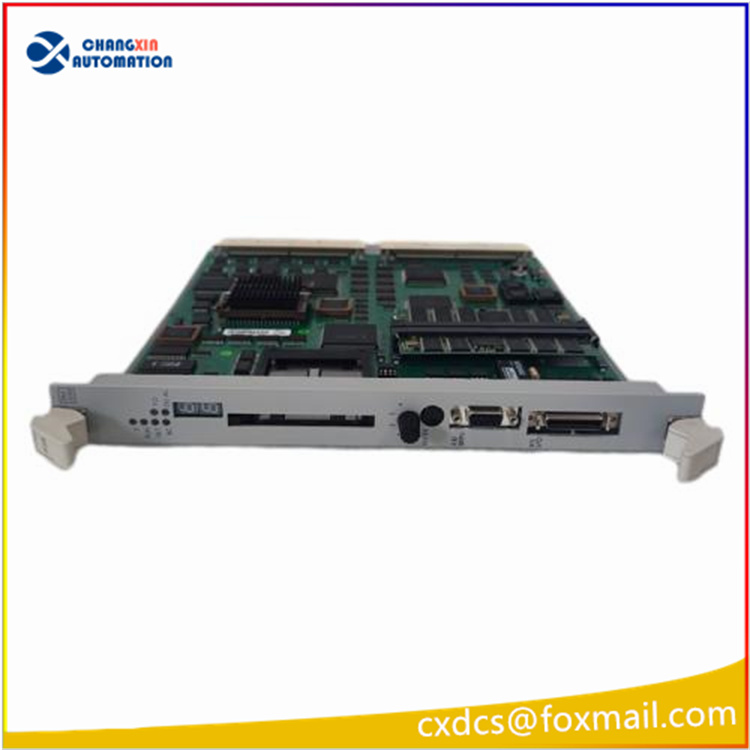

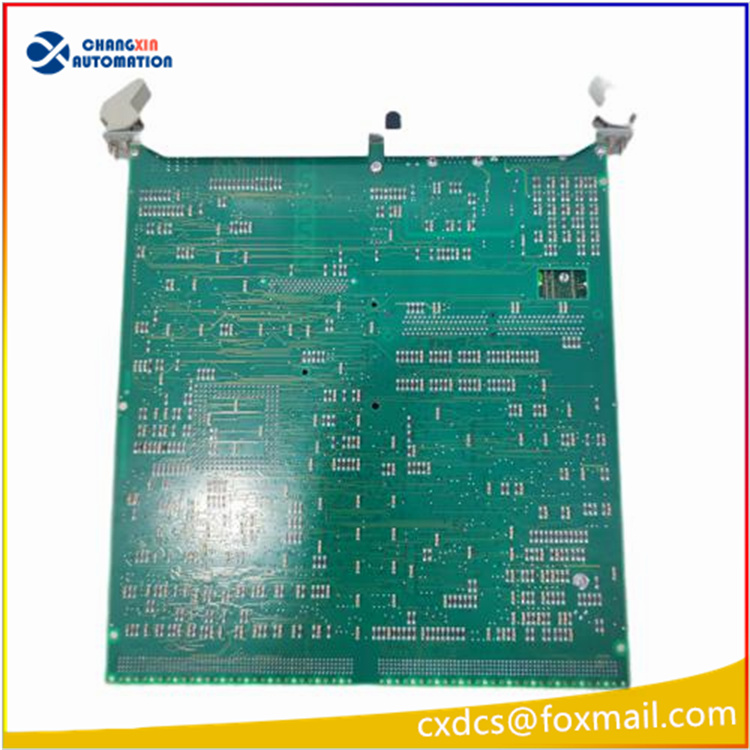

The ABB PM511V16 (Order Number 3BSE011181R1) is a high-performance processor module of the ABB Advant OCS series. It is the core control component of industrial automation systems and is widely used in process control and equipment monitoring in various industries such as power and chemical. There are slight differences in parameters among different suppliers. The following is a detailed data table compiled based on the consolidated and authoritative information from mainstream sources:

CategorySpecific Parameters

Basic Information Manufacturer: ABB

Product Type: Industrial Control Processor Module

Series: Advant OCS Series

Order Number: 3BSE011181R1

Certification Standards: CE, RoHS, IEC 61508 (SIL 2), Compliant with IEC 60068 - 2 - 6 vibration standard

Core Processing and Storage Processor: PowerPC 603e/604e or 750, with a maximum frequency of 800MHz - 1GHz

Memory Configuration: 16MB with ECC error correction RAM (partially SDRAM), combined with 512KB - 2MB flash memory

Processing Performance: Complex control algorithms execute in as low as 0.1ms, capable of efficiently handling complex tasks such as logic control and PID control

Communication Interfaces Interface Type: 2 RS - 232 serial ports, Ethernet interface, some with RS - 485 interface

Supported Protocols: Modbus RTU, Profibus DP, Advant Fieldbus, some versions compatible with CANopen, EtherCAT

I/O Performance I/O Points: Single slot provides 32 I/O points, common configuration is 16 digital inputs, 16 digital outputs, some models include 4 analog inputs and 4 analog outputs

Expansion Capability: Modular design, can be paired with expansion I/O modules, compatible with AC500 and S800 I/O systems

Power Supply and Power Consumption Input Voltage: 24V DC ±10%

Operating Power Consumption: Less than 12W

Physical and Environmental Parameters Dimensions: Mainstream specification 274.5H×270W×27mm, some versions are 120mm×100mm×33mm

Weight: 0.3 - 0.5kg

Protection Grade: IP20 (requires a protective enclosure)

Operating Temperature: -40°C to + 70°C

Storage Temperature: -40°C to + 85°C

Core Functions and Installation Core Functions: Supports data acquisition, alarm management, fault diagnosis; supports hot swapping, maintenance without downtime; ECC memory ensures data integrity, EMI shielding reduces interference

Installation Method: 35mm DIN rail installation or rack installation, front panel LED indicators can display real-time operating status

This module is often used as the core control component of industrial automation systems, and is suitable for process control and equipment monitoring scenarios in multiple fields such as power, petrochemical, manufacturing, and water treatment. It can be conveniently configured and programmed through the ABB Control Builder software. If precise adaptation of equipment is required, it is recommended to refer to the official technical manual of ABB.
