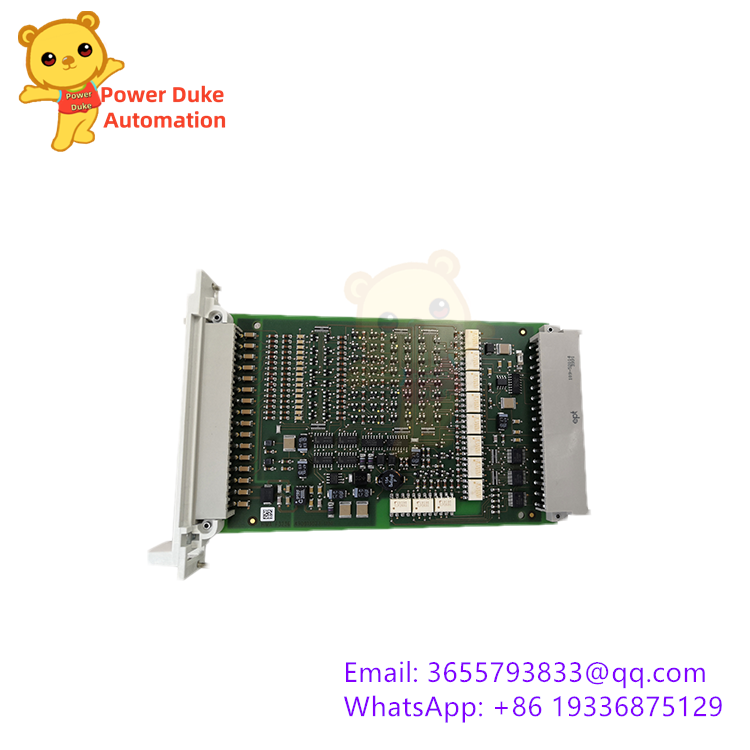

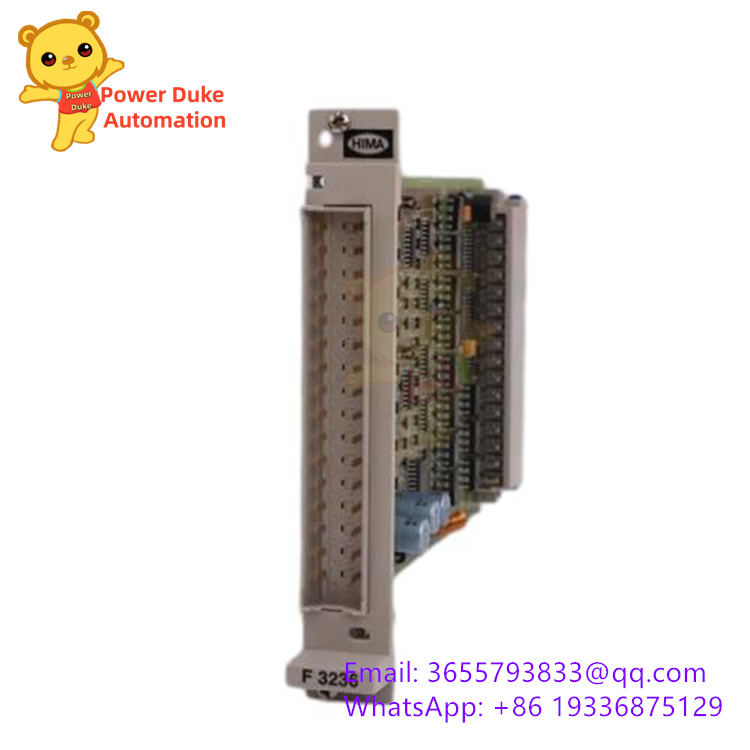

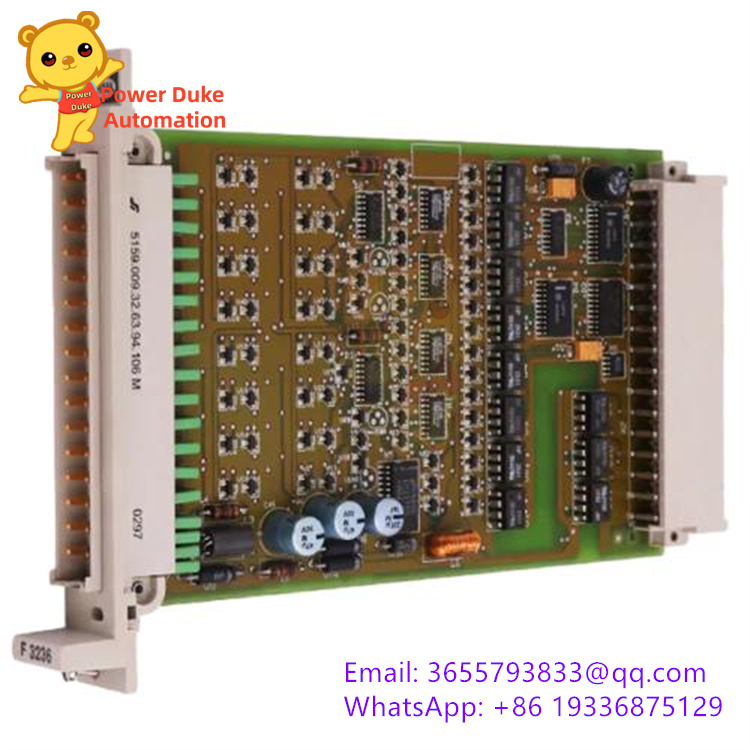

HIMA F3236 is an 8-channel digital input module specifically designed for safety-critical systems. It features high reliability, self-checking and diagnostic capabilities, a safety redundant architecture, and industrial-grade protection design. It is suitable for industries such as petrochemicals, oil and gas, power, and high-end manufacturing. Here is a detailed introduction to the HIMA F3237 digital input module:

I. Core Parameters

Input Channels: 8-channel digital input, supporting safety-related signal input.

Input Voltage: 24V DC, in accordance with industrial standards.

Signal Recognition Range:

"0" Signal: 0.35–1.2 mA

"1" Signal: 2.1–6.0 mA

Fault Thresholds:

Open Circuit Detection: ≤0.28 mA

Short Circuit Detection: ≥6.5 mA

Response and Connection Performance:

Switching Time: ≈10ms

Line Impedance: ≤50 Ω (in accordance with DIN 19234 standard)

Maximum Line Length: 1000 meters (cross-sectional area 0.5 mm²)

Diagnosis and Storage:

Automatically stores 500 channel-level diagnostic information.

Supports real-time transmission of diagnostic data to DCS system.

Product features

Self-check and diagnostic functions:

During operation, a fully automatic closed-loop test is continuously executed, covering input circuit crosstalk (Walk-0 test), input filter effectiveness, short/cut detection of sensor lines, and module internal functional integrity.

The LED status indicator light is not within the scope of self-check and requires manual visual inspection.

Safety redundant architecture:

Supports HIMA's unique quadruplex (QMR) structure (2oo4D), which has been certified by TÜV SIL3/AK6.

Allows for online module replacement without a fault repair time limit.

When integrated into the HIMax system, supports flexible redundant configuration from dualization to octuplexation.

Industrial-grade protection design:

Built-in magnetic isolation and filtering circuits in the input channels suppress electromagnetic interference.

Complies with DIN EN 62061 functional safety certification.

Wide operating temperature range (-40°C to +70°C), suitable for harsh environments.

Applicable industry scenarios

The HIMA F3236 is specifically designed for safety instrument systems (SIS) and emergency stop systems (ESD). Typical application scenarios include:

Petroleum and Chemicals: Reaction vessel interlock, leakage emergency shutdown.

Oil and Gas Energy: Offshore platform well control safety, long-distance pipeline emergency cutoff.

Power System: Boiler protection, turbine overspeed shutdown.

High-end Manufacturing: Safety access control for automotive production lines, isolation of robot working areas.
