Products Description

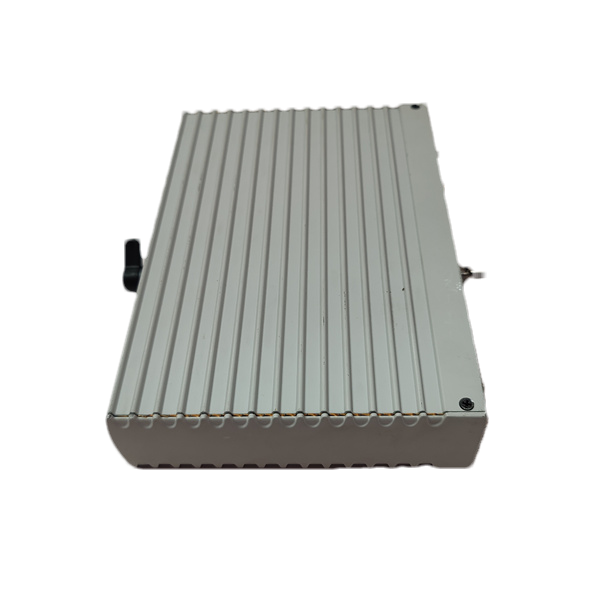

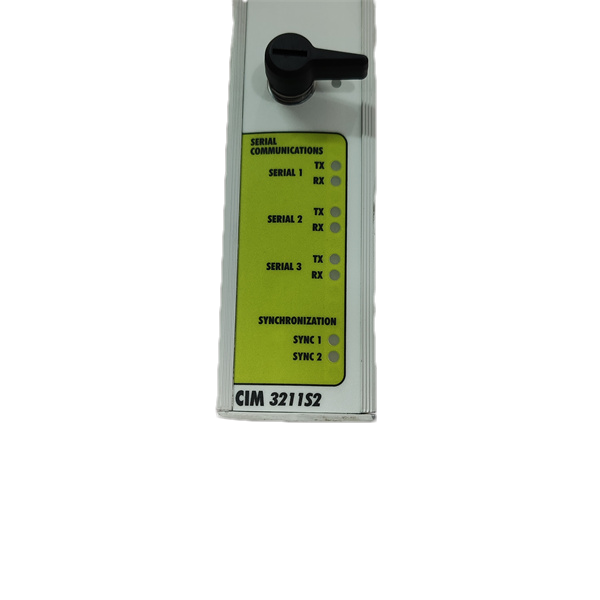

TRICONEX CIM3211 S2 Communication / Digital Input Module
Product Overview
The TRICONEX CIM3211 S2 is a high-performance digital input module designed for Safety Instrumented Systems (SIS). It captures discrete ON/OFF signals from field devices and reliably communicates them to the Triconex controller. Moreover, its Triple Modular Redundancy (TMR) architecture ensures fault-tolerant operation even under adverse conditions. The module is ruggedly built to withstand extreme temperatures and industrial environments, making it ideal for emergency shutdown, fire & gas detection, and power generation applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Type | Digital ON/OFF |
| Channels | 32 isolated input channels |
| Nominal Input Voltage | 24 VDC |
| Input Current | 8 mA per channel |
| Response Time | <1 ms |
| Isolation | Channel-to-channel and field-to-logic isolation |
| Diagnostics | Self-test, fault detection, SOE recording, loop monitoring |
| Dimensions | 177 mm × 100 mm × 30 mm |
| Weight | 1.5 kg |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Certifications | IEC 61508 SIL3, TÜV, CE, UL, CSA |
| Series | TRICONEX CIM3211 S2 |
| Origin | USA |
FAQ
Q: How many digital input channels does the CIM3211 S2 support?
A: It supports 32 isolated digital input channels for reliable field monitoring.
Q: What is the module’s response time?
A: The module responds in less than 1 millisecond for safety-critical detection.
Q: Can the module be replaced without stopping operations?
A: Yes, it features a hot-swappable design allowing maintenance without downtime.
Q: Which safety certifications does it have?
A: Certified IEC 61508 SIL3, TÜV approved, and compliant with CE, UL, CSA standards.
Q: What environments can this module operate in?
A: It operates from –40 °C to +70 °C with 5–95% non-condensing humidity, suitable for industrial use.
Technical Specifications
The TRICONEX 3211 module is engineered with specific technical parameters for optimal functionality. These specifications detail its physical and operational characteristics, ensuring compatibility and safe use.
| Feature | Specification |
|---|---|
| Product Type | Enhanced Communication Module (ECM) |
| Model Number | 3211 |
| Operating Temperature | -20°C to 70°C |
Frequently Asked Questions
Q: Is the Triconex 3211 module new?
A: We provide a brand new, original factory module.
Q: Do you have the Triconex 3211 in stock?
A: We currently have this module in stock.
Q: What is the estimated shipping time?
A: We typically ship orders within 3 days to 2 weeks, depending on the order size. We use common carriers like DHL.
Q: What is your return policy?
A: We support returns within 30 days if there is a quality issue with the product.
Q: What is the main function of the TRICONEX 3211 module?
A: The main function of the 3211 is to provide reliable and secure Ethernet communication for the Triconex system, allowing for data exchange with other devices and networks.
