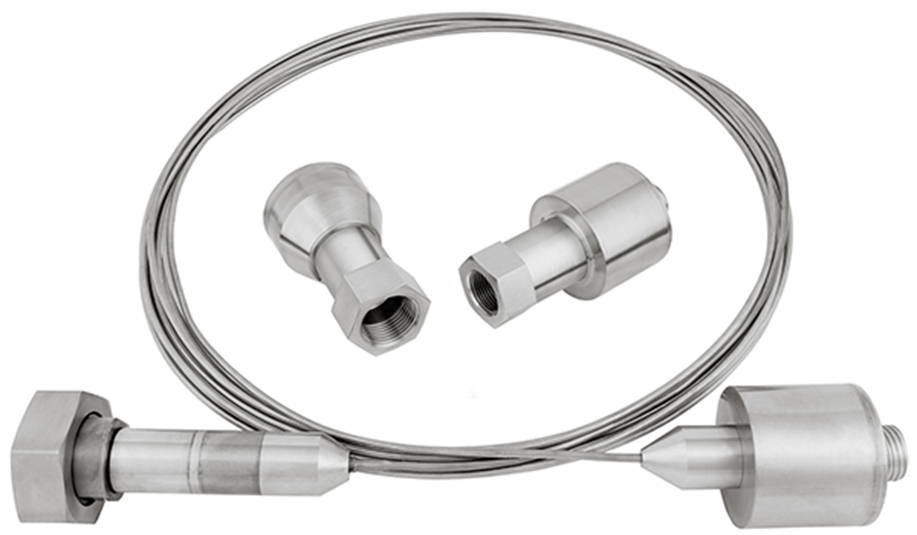

GE 124T5712P0001Flame Tracker UV Flame Sensor
Brand: GE Reuter-Stokes (original U.S. manufacturer), common part number 362A1052P104, a mainstream high-precision flame monitoring probe widely used in gas turbines and industrial combustion systems
I. Core Detection Principle
Photoelectric element: SiC silicon carbide photodiode, combined with sapphire light-transmitting window
Detection spectrum: Flame-specific ultraviolet band 185–260nm, precisely filtering out sunlight, welding arc, and lighting light interference
Standard: Two-wire 4–20mA direct current transmitter, standard industrial analog output
Key Electrical Performance
Power supply voltage: 12–30VDC (standard 24VDC), filtered direct current power supply
Signal output: 4–20mA; 4mA = no flame, 20mA = full-strength flame
Response time: <25ms (0.025s), rapid flame extinction protection
Load impedance: Maximum 750Ω for 4–20mA loop
Power consumption: Normal operation <3W
| RS PART NUMBER | DESCRIPTION |
|---|---|
| RS-FS-9001 | FLAME SENSOR (UV) – NA CLASS I DIV 2, ATEX ZONE 2 |
| RS-FS-9004 | FLAME SENSOR (UV) – NA CLASS I DIV 1, ATEX ZONE 1 |
| RS-FS-9006-MFR | FLAME SENSOR (UV) – AERODERIVATIVE (AS9100) |
| RS-FS-9009-03 | FTD 325 – CLASS I DIV 2, ATEX ZONE 2, NO COOLING REQUIRED, MAX TEMP 325°C |
| RS-FS-9010-03 | FTD 325 – CLASS I DIV 1, ATEX ZONE 1, NO COOLING REQUIRED, MAX TEMP 325°C |
| RS-FS-9009-03-25x | FTD 325 ILG – NO COOLING REQUIRED, MAX TEMP 325°C, INCREASED LOW GAIN FOR LOW INTENSITY LIGHT, CLASS I DIV 2, ATEX ZONE 2 |
| RS-FS-9010-03-25x | FTD 325 ILG – NO COOLING REQUIRED, MAX TEMP 325°C, INCREASED LOW GAIN FOR LOW INTENSITY LIGHT, CLASS I DIV 1, ATEX ZONE 1 |
| RS-FS-9100 | FLAME TRACKER LITE FOR INDUSTRIAL APPLICATIONS |
| RS-FS-9100-RELAY | RELAY, 1CH, D5254S |
| RS-FS-9101 | COIL COOLING WATER (GEPS #353B3490G001) |
| RS-FSM-1002-002 | FLAME SENSOR MODULE, MKV |
| SP-566 | COIL COOLING WATER (GEPS #353B3490G001) |
| RS-E2-0266G091 | KIT: (4) RS-FS-9009-03 / (4) RS-E2-0285P004 / MISC. HARDWARE |
| RS-E2-0266G092 | KIT: (4) RS-FS-9009-03 / (4) RS-E2-0285P004 / (1) RS-FSM-1002-002 / HARDWARE |
| RS-E2-0266G093 | KIT: RS-FS-9009-03 MOUNTING HARDWARE |
| RS-E2-0266G094 | KIT: (1) RS-FS-9100 / (1) RS-E2-0285P021 |
| RS-E2-0266G096 | KIT: (1) RS-FS-9100 / (1) RS-E2-0285P021 / (1) CASE / (1) RS STICKER (2) RS-FS-9009-03 / (2) RS-E2-0285P004 / (1) RS-FSM-1002-002 / |
| RS-E2-0266G097 | KIT: (1) RS-E1-0039-003 / HARDWARE |
| RS-E2-0266G098 | KIT: (2) RS-FS-9009-03 / (2) RS-E2-0285P004 / (1) RS-E1-0039-003 / HARDWARE |
| RS-E2-0266G099 | KIT: (8) RS-FS-9009-03 / (8) RS-E2-0285P004 / (2) RS-FSM-1002-002 / HARDWARE |
| RS-E2-0266G100 | KIT: (8) RS-FS-9009-03 / (8) RS-E2-0285P004 / HARDWARE |
| RS-E2-0285P001 | FLAME SENSOR CABLE: 60FT LONG / RIGHT ANGLE CONNECTOR |
| RS-E2-0285P004 | FLAME SENSOR CABLE: 120FT LONG / RIGHT ANGLE CONNECTOR |
| RS-E2-0285P011 | FLAME SENSOR CABLE: 60FT LONG / STRAIGHT CONNECTOR |
| RS-E2-0285P012 | FLAME SENSOR CABLE: 120FT LONG / STRAIGHT CONNECTOR |
| RS-E2-0285P021 | FLAME SENSOR CABLE: 15FT LONG / RIGHT ANGLE CONNECTOR |
Reuter-Stokes Cross Reference Matrix
| RS PART NUMBER | GE PART NUMBER | REPLACES PART NUMBER | DESCRIPTION |
|---|---|---|---|
| RS-FS-9001 | 362A1052P404 | 362A1052P001 362A1052P003 362A1052P004 362A1052P104 362A1052P203 362A1052P243 362A1052P303 362A1052P304 184X0254M029 RRO00148 | FLAME SENSOR (UV) |
| RS-FS-9004 | 362A1052P105 362A1052P406 362A1052P407 | 362A1052P105 362A1052P106 362A1052P107 362A1052P306 362A1052P307 121T9685P0010 184X0254M123 RRO00149 | FLAME SENSOR (UV) |
| RS-FS-9006-MFR | 362A1379P001 L44819P01 | 8TP10LMX J04937 RS-FS-9006 | FLAME SENSOR (UV) – AERODERIVATIVE |
| RS-FS-9009-03 | 124T5712P0001 | RS-FS-9009-01 RRO00345 | FTD 325 |
| RS-FS-9010-03 | 124T5712P0001 | RS-FS-9009-02 RRO00345 | FTD 325 |
| RS-FS-9009-03-25x | 302T1201P0001 | RS-FS-9009-03 | FTD 325 ILG, ZONE 2 |
| RS-FS-9010-03-25x | 302T1201P0002 | RS-FS-9010-03 | FTD 325 ILG, ZONE 1 |
| SP-566 | 353B3490G001 | COIL COOLING WATER | |
| RS-E2-0285P001 | 362A1053P031 | CABLE: 60FT / RIGHT ANGLE | |
| RS-E2-0285P004 | 362A1053P036 | CABLE: 120FT / RIGHT ANGLE | |
| RS-E2-0285P011 | 362A3342P002 | CABLE: 60FT / STRAIGHT | |
| RS-E2-0285P012 | RS-E2-0285P013 | CABLE: 120FT / STRAIGHT | |
| RS-E2-0285P021 | RS-E2-0285P011 | CABLE: 15FT / RIGHT ANGLE |
