Products Description

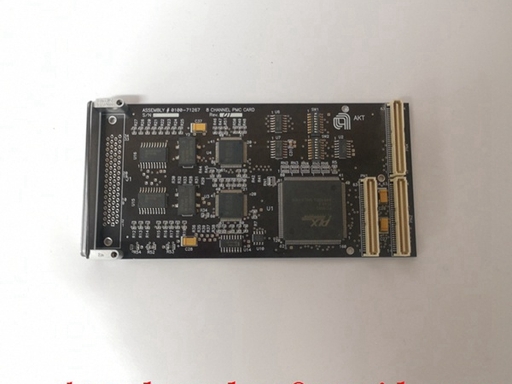

Brand: AMAT (Applied Materials)Part No.: 0100-71267Type: PMC-based Precision Control Module / PCB Assembly
Basic Overview
The 0100-71267 is a dedicated PMC (PCI Mezzanine Card) control module for AMAT semiconductor process equipment. It functions as a high-precision signal acquisition and motion control board, critical for coordinating sub-systems in wafer fabrication tools.
Key Specifications
- Form Factor: Standard PMC expansion card
- Channels: 8-channel multi-function I/O
- Voltage: 24VDC (operating)
- Temperature: 0°C ~ +60°C (cleanroom rated)
- Comm: RS-232/422/485, Ethernet
- Dimensions: ~10×15×20 cm; Weight: ~1 kg
Core Functions
- Multi-channel Signal Acquisition: Collects 8 analog/digital signals from sensors
- Process Control: Executes logic control for chambers, valves, and actuators
- Data Communication: Bridges main controller and field devices via serial/Ethernet
- Precision Counting: High-speed pulse counting for position/flow monitoring
Compatibility & Application
- Applicable Platforms: Centura, Endura 200/300mm etch, PVD, CVD systems
- Installation: VME backplane or PMC slot in main control unit
- Role: Controls chamber pressure, gas flow, and wafer handling subsystems
Supply Notes
- Versions: New original, fully tested refurbished
- Packaging: Anti-static ESD bag with factory test reports
- Obsolescence: Discontinued by AMAT; refurbished is primary supply
Short English Version (for overseas listing)
AMAT 0100-71267PMC-based precision control module for Applied Materials semiconductor equipment. 8-channel I/O, RS-485/Ethernet communication, designed for Centura/Endura etch & deposition systems. New and tested refurbished in stock.
