Product Positioning and Core Functions

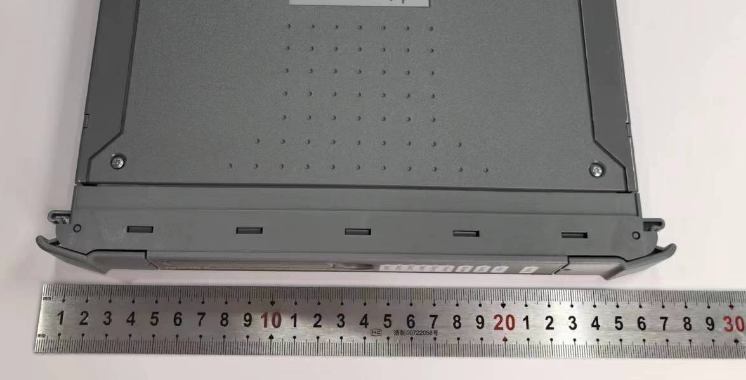

ICS TRIPLEX T8151B is a reliable communication interface module produced by the ICS Triplex brand under Rockwell Automation. It is specifically designed for industrial automation and process control and has the following core functions:

Multi-protocol communication support

Supports multiple industrial communication protocols such as Modbus, Profibus, and Ethernet/IP, enabling seamless integration with devices from different manufacturers and facilitating data exchange and remote monitoring.

Provides two Ethernet ports and four serial ports, supporting high-speed data transmission, meeting the requirements of complex industrial networks.

High reliability design

Adopts a triple redundancy (TMR) architecture, with three times backup for key components (such as processors, communication interfaces), ensuring that the system can still operate normally even in the event of a single or multiple component failures.

Supports hot-swappable function, allowing module replacement while the system is powered on, without the need for downtime maintenance, with an average repair time (MTTR) of less than 1 minute.

Security and diagnostic functions

Includes data encryption and security protocols to prevent unauthorized access and data tampering, meeting industrial security standards (such as IEC 61508 SIL3).

Provides fault detection and alarm functions, supports SOE (Event Sequence Recording), enabling rapid fault location, with an average fault location time of less than 5 minutes.

Open system integration

Supports open interfaces such as OPC servers, facilitating integration with other industrial systems (such as DCS, SCADA), enhancing equipment management efficiency.

Provides Modbus Slave functionality and optional Modbus Master (requires T812X processor interface adapter), expanding communication capabilities.

Typical application scenarios

Oil and gas industry

Used for equipment monitoring and data collection during oil and gas extraction and processing, ensuring safe and efficient production.

Supports remote monitoring and fault diagnosis, reducing on-site maintenance costs.

Chemical and pharmaceutical industry

Monitors key equipment in chemical production processes (such as reactors, heaters), ensuring stable process parameters.

Reduces the risk of production interruption due to equipment failures through redundant design.

Power industry

Used for equipment control and protection in power plants and power grids, improving the stability and reliability of the power system.

Supports real-time data transmission, facilitating remote management by the dispatch center.

Transportation system

Coordinates traffic signal control, optimizes traffic flow, and ensures the normal operation of the transportation system.

In rail transportation, monitors train operation status to ensure safety.

Mining and marine engineering

Monitors mining equipment and marine platform operations to meet the requirements for stable operation in extreme environments.

Key Features of  T8151B：

• Trusted Operating System: Ensures secure and reliable operation.

• Dual Ethernet and Four Serial Ports: Offers versatile connectivity options.

• Support for Multiple Communication Protocols: Including Modbus RTU, Open Modbus TCP, Trusted Peer to Peer, Trusted Enhanced Peer to Peer, ICS2000, CP2000, among others.

• Modbus Slave Functionality: With optional Modbus Master capability when used with the T812X Trusted Processor Interface Adapter.

• Sequence Of Events (SOE) Over Modbus: Optional feature for detailed event logging.

• Front Panel Serial Diagnostic Port: Along with fault and status indicators for easy troubleshooting.

• Power Supply: Operates on a backplane supply of 20 Vdc to 32 Vdc.

• Isolation: Provides electrical isolation between various components for safety and reliability.

• Operating Conditions: Designed to operate within temperatures ranging from 0°C to +60°C (+32°F to +140°F). ICS T8151B

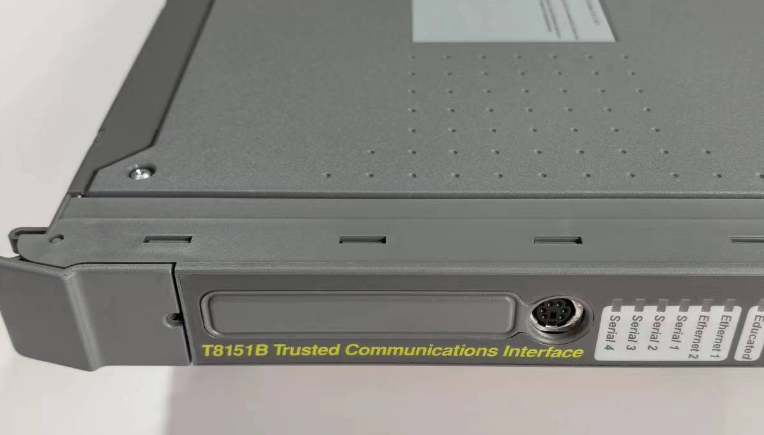

T8151B Trusted Communications Interface
