ABB DTCC901B 3BSC980006R152 61430001-FU Input/Output module.The ABB DTCC901B 61430001-FU is an Input/Output (I/O) module manufactured by ABB, a leading global technology company specializing in robotics, automation, and electrification solutions. This module is designed for use in various industrial applications, including nuclear power plants, where precise control and monitoring of processes are critical.

Features and Applications:

Versatility: The DTCC901B 61430001-FU is versatile, capable of handling both input and output operations, making it suitable for a wide range of applications beyond nuclear power plants.

Quality and Reliability: Being manufactured by ABB, the module is built to high standards of quality and reliability, ensuring it can withstand the demanding conditions found in industrial environments.

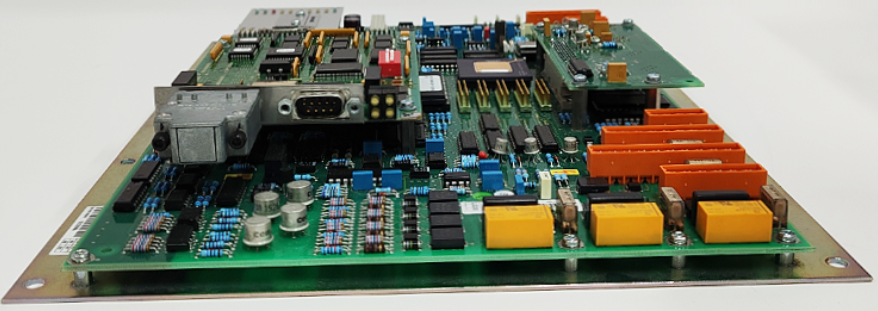

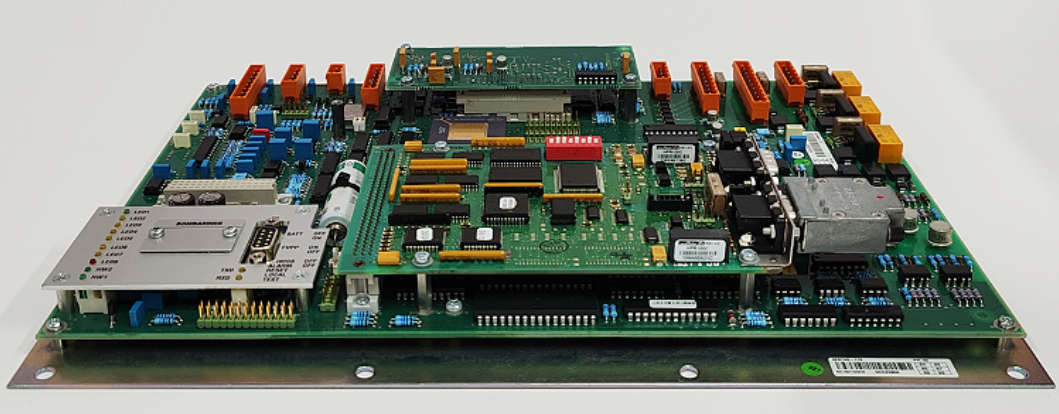

ABB DTCC901B 3BSC980006R152 61430001-FU Input/Output module

 Model Code Interpretation

DTCC901B: Product model, DCS I/O bus control board

3BSC980006R152: Internal material code (original factory order code) of ABB

61430001-FU: OEM / project customization number, common identification for the same board

Core Functions

MasterBus300 bus bridge: Achieve data interaction between DCS main control DPU and on-site S100/S800 remote I/O racks

Local DI/DO terminal expansion: Board-integrated digital input/output circuits, directly connect to on-site valve position, contactor, switch signals

Fault self-diagnosis: Report bus disconnection, channel short circuit, power abnormality to DCS system alarm

Redundancy compatibility: Support dual-board redundant hot backup, compatible with Symphony, Advant OCS complete control system

Key Electrical Parameters

Power supply: Backplane of the cabinet 24VDC system power supply

Bus protocol: MasterBus 300 industrial dedicated parallel bus

Isolation withstand voltage: Channel to ground 2000VAC, group-to-group 2500VAC insulation isolation

Operating environment: -25℃ to +60℃, control room dust-proof cabinet installation

Net weight: 1.32kg; Dimensions: 220×261×39mm

Protection level: IP30 (installed in the rack)

Application Scenarios

Thermal power main equipment: DCS of power plant boilers, auxiliary machine control, ETS interlock system (retrofit spare parts for the old units of Beili Symphony)

Papermaking / Pulp production: Paper machine drive, drying section sequential control DCS system

Metallurgy and chemical industry: Rolling steel production line, refining and chemical plant Advant system I/O expansion replacement parts
