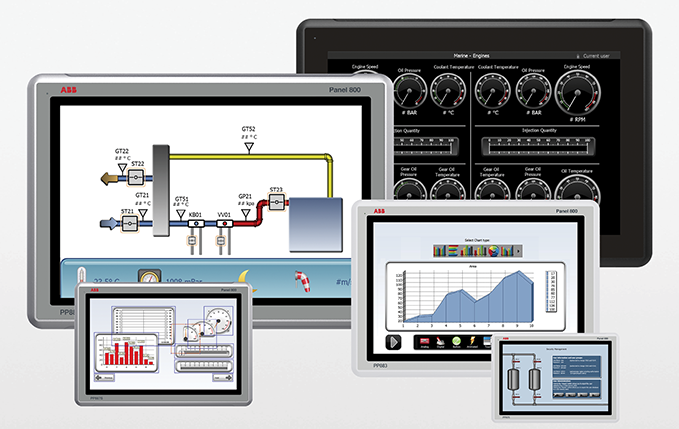

The ABB PP865A (3BSE042236R2) is a 15-inch industrial touch screen HMI from the ABB Panel 800 series, designed for mid-to-high-end automation applications, featuring high resolution, wide operating temperature range, IP65 front panel, and multi-protocol communication.

I. Basic Information

Model: PP865A

Item Number: 3BSE042236R2

Series: Panel 800

Size: 15-inch TFT-LCD

Touch: Resistive touchscreen (industrial-grade, oil-resistant and waterproof)

Origin: Switzerland / Europe

Warranty: Manufacturer's 12-month warranty

 Core Hardware Specifications

Display

Resolution: 1024 × 768 (XGA)

Colors: 262K colors

Brightness: 450 cd/m²

Backlight: LED, lifespan ≥50,000 hours

Structure & Environment

Front Panel: IP65 / NEMA 4 (dustproof and splash-proof)

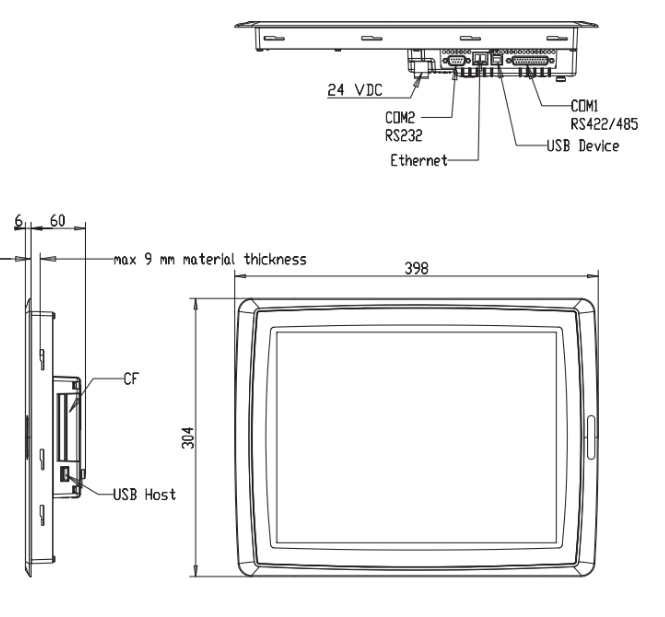

Dimensions (W × H × D): 398 × 308 × 86 mm

Weight: Approx. 4.5 kg

Operating Temperature: 0 ~ +55 °C (some versions support −20 ~ +60 °C)

Storage Temperature: −40 ~ +70 °C

Power & Power Consumption

Supply Voltage: 24 VDC ±10%

Power Consumption: Approx. 15 W

Interfaces & Communication

Ethernet (TCP/IP): 10/100 Mbps, supports ABB 800xA, Modbus TCP, Profinet, etc.

RS-232: 9-pin D-Sub

RS-485: Supports Modbus RTU

USB 2.0: Front-panel USB (for uploading/downloading programs and data logging via USB drive)

Expansion: External keyboard, mouse, printer supported

Software & Performance

System: ABB proprietary real-time operating system

Programming Software: Panel Builder 800 (ABB standard HMI configuration tool)

Memory: 128 MB Flash / 64 MB RAM

Features: Multilingual support, historical trend graphs, alarm management, data logging, recipe management, user permissions

Typical Applications

Process Industries: Water treatment, cement, chemical, paper, metallurgy

Power & Energy: Power plants, substations, PV/wind power monitoring

Manufacturing: Production lines, packaging, robotics, logistics sorting

Compatible ABB Control Systems: 800xA, Freelance, Compact Control Builder
