ABB 5SHY3545L0020 3BHE014105R0001 5SXE08-0166 is a high-power IGCT (Integrated Gate-Commutated Thyristor) module designed for robust performance in medium-voltage drives and industrial power conversion. It offers exceptional reliability, efficiency, and power density for demanding applications like traction and heavy-industry motor control.

Yes, the ABB 5SHY3545L0020, 3BHE014105R0001, and 5SXE08-0166 form a **high-power IGCT (Integrated Gate-Commutated Thyristor)** module assembly. - **5SHY3545L0020**: The main IGCT power chip. - **3BHE014105R0001**: The matched gate drive unit. - **5SXE08-0166**: The control board/part number for the assembly. Key Specifications - **Voltage Rating**: 4.5 kV - **Current Rating**: Up to 3,000 A (higher under specific cooling) - **On-state Voltage ｄｒｏｐ**: 1.5–2.5 V - **Switching Frequency**: Up to several hundred Hz - **Operating Temperature**: -40 °C to +125 °C Applications - Medium-voltage drives (e.g., ACS6000) - HVDC transmission systems - Static VAR compensators (SVC) - High-power inverters/converters for industry Core Advantages - Combines **high voltage/current handling** (like GTO) with **fast switching** (like IGBT) - Integrated gate unit simplifies system design and improves reliability - Low losses for high-efficiency power conversion Need me to turn this into a concise one-paragraph product description for your datasheet or listing?

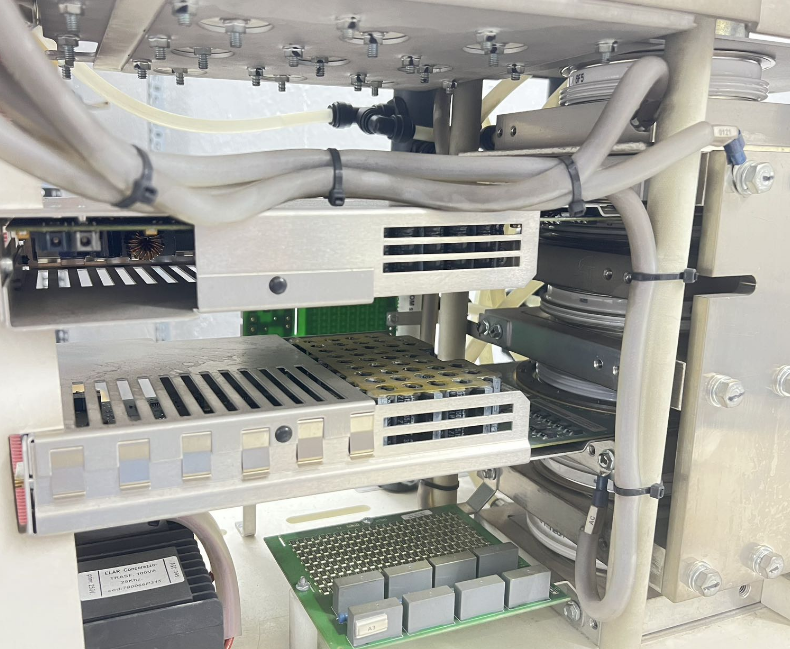

The scene diagram used:
